UV-C PRODUCT SELECTOR GUIDE

Product Image Product Family Peak Wavelength Package Max Drive
Current		 Optical Power at
Max Drive Current		 Downloads Status
XBT-1313-Gen2 275 nm SMT
1.3 mm x 1.3 mm		 100 mA 5.0 mW to 15.0 mW Datasheet
 Active

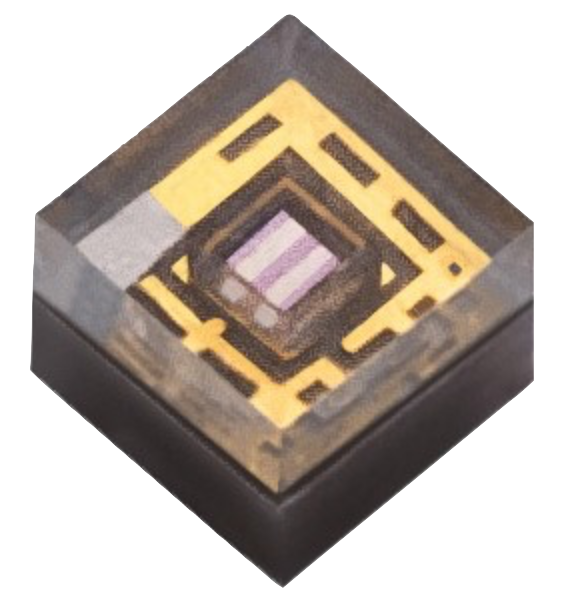

XBT-1313-UV LEDs

Features

  • Latest generation XBT-1313 LED with improved packaging technology enables higher than 10 mW
  • Emission wavelength between 270 nm and 280 nm
  • Ultra-compact form factor: 1.3 mm x 1.3 mm
  • Wide viewing angle of 150 degrees
  • High reliability package with ESD protection
  • Standard SMD Process• RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XST-3535-UV 275 - 285 nm SMT
3.5 mm x 3.5 mm		 800 mA 80 mW to 110 mW Datasheet
 Active

XST-3535-UV LEDs

Features

  • UVC LED with emission wavelength between 275 nm and 285 nm
  • High Optical Power: Up to 100 mW of UVC power at maximum rated current
  • Compact form factor: 3.5 mm x 3.5 mm package
  • Narrow viewing angle of 60 degrees
  • Standard SMT Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XBT-3535-UV 275 - 285 nm SMT
3.5 mm x 3.5 mm		 800 mA 70 mW to 100 mW Datasheet
 Active

XBT-3535-UV LEDs

Features

  • UVC LED with emission wavelength between 275 nm and 285 nm
  • High Optical Power: Up to 80 mW of UVC power at maximum rated current
  • Compact form factor: 3.5 mm x 3.5 mm package with optically transparent window
  • Viewing angle of 130 degrees
  • Standard SMD Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation

UV-A PRODUCT SELECTOR GUIDE

Product Image Product Family Peak Wavelength Package Max Drive
Current		 Optical Power at
Max Drive Current		 Downloads Status

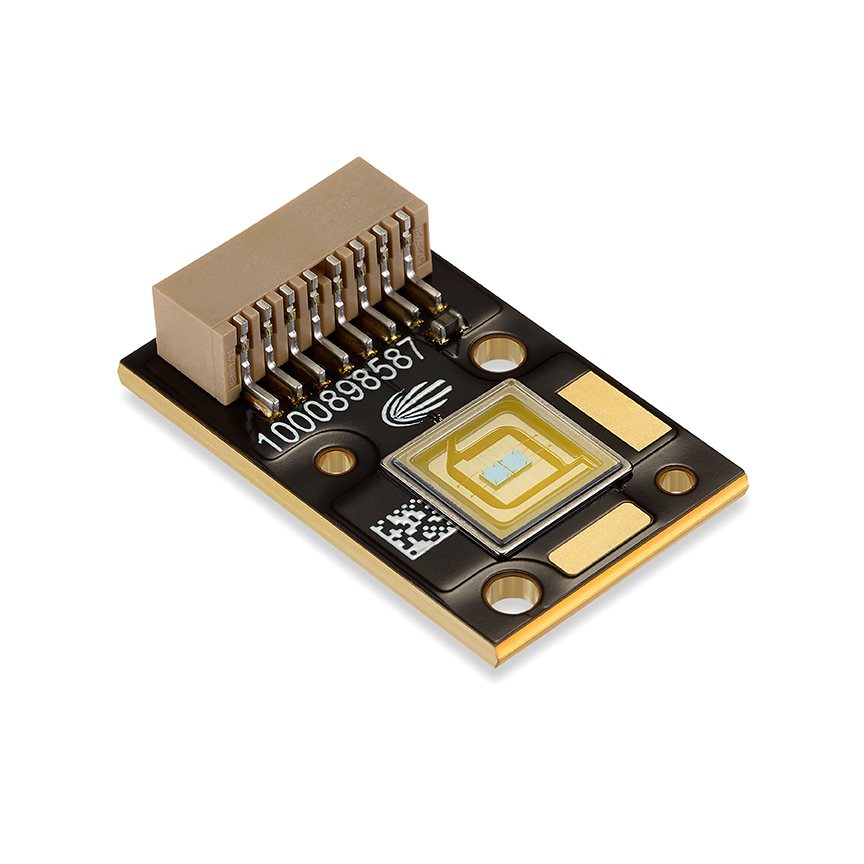

CBM-25X 405 nm MCPCB
26.5 mm x 16.0 mm		 4.0 A
Vf=9 V @4 A		 2.8 W typ (1A)
8.0 W typ (4A)		 Contact Luminus
sales@luminus.com 		Sampling

CBM-25X LEDs

Features

  • Mosaic Array UV LED chipset with 2.4 mm2 emitting area, 2.1:1 aspect ratio
  • Latest UVX technology enables ultra-high power density—operation up to 4 A/mm2
  • Automotive certification planned
  • High thermal conductivity isolated copper coreboard package
  • Low-profile window for efficient coupling into small-etendue systems/li>

APPLICATIONS

  • Automotive projection displays
  • 3D Printing and Additive Manufacturing
  • Machine Vision
  • Fiber-coupled illumination
  • Medical and Scientific Instrumentation

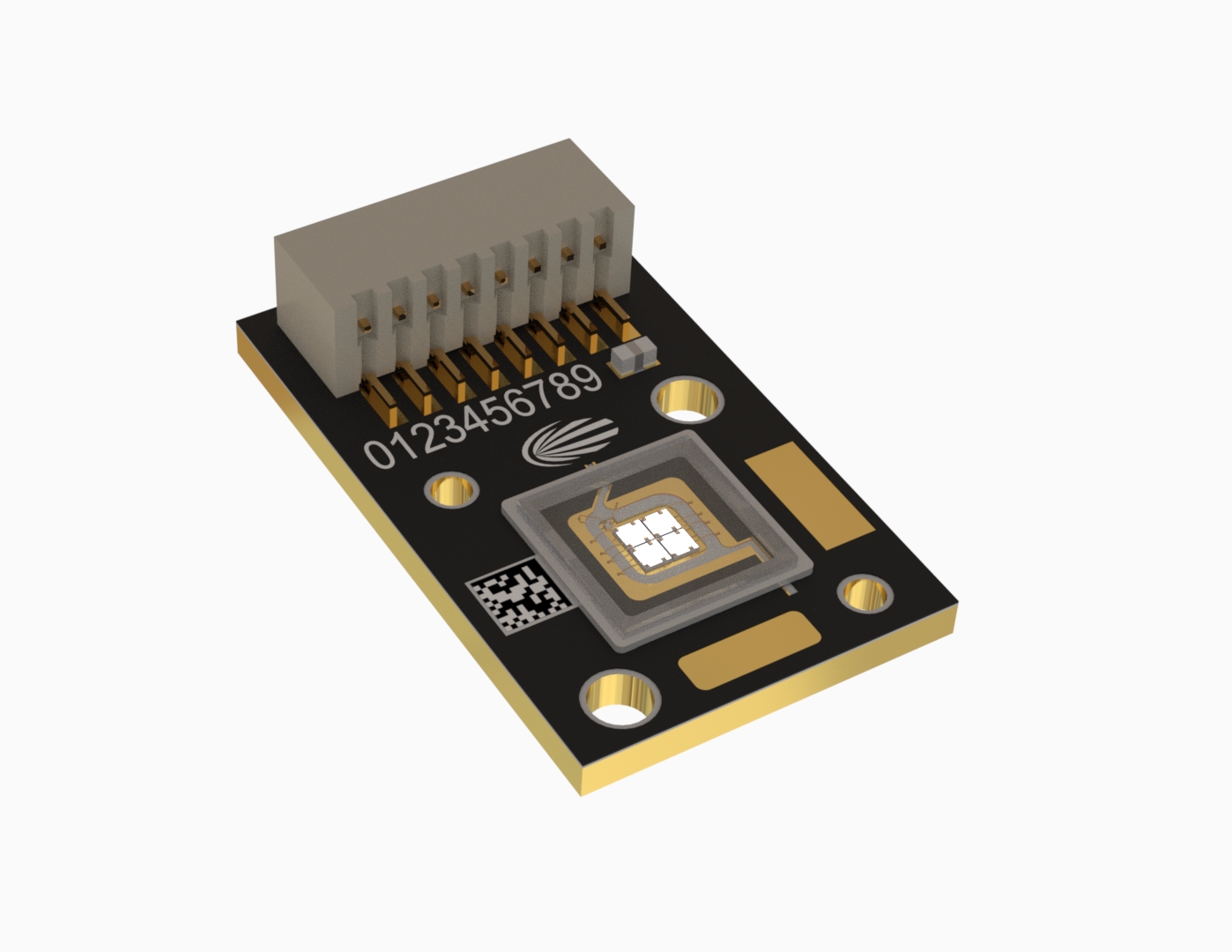

CBM-50X 365 nm MCPCB
26.5 mm x 16.0 mm		 6.0 A 9.2 W typ (6A) Contact Luminus
sales@luminus.com 		Sampling
385 nm 18.8 W typ (8A)
405 nm 18.0 W typ (8A)

CBM-50X LEDs

Features

  • Mosaic Array UV LED chipset with 5.2 mm2 emitting area, 1:1 aspect ratio
  • Latest UVX technology enables ultra-high power density operation up to 4 A/mm2
  • Available in wide range of UVA wavelengths: 365 nm - 410 n
  • Isolated, high thermal conductivity copper coreboard package
  • Low-profile window for efficient coupling into small-etendue systems
  • Environmentally friendly: REACH, RoHS and Halogen compliant

APPLICATIONS

  • 3D Printing and Additive Manufacturing
  • Machine Vision
  • Fiber-coupled illumination
  • Medical and Scientific Instrumentation
SST-10-UV 365 nm SMT
3.45 mm x 3.45 mm		 1.0 A 1.3 W - 1.6 W Datasheet Active
385 nm 2.5 W - 2.7 W
395 nm 2.5 W - 2.7 W
405 nm 2.2 W - 2.5 W

SST-10-UV LEDs

Features

  • High Power UV LED with Peak Wavelengths between 365-405nm
  • Industry standard 3.5mmx3.5mm package
  • 130° viewing angle at 50% Iv
  • Low Thermal Resistance - 3.4 C/W
  • Built-in ESD Protection

APPLICATIONS

  • Horticulture
  • Curing
  • Adhesives
  • Inks
  • Plastic Products
CBT-39-UV 405 nm MCPCB
26.5 mm x 16.0 mm		 6.0 A 4.0 W to 8.0 W Datasheet
Binning and Labeling 		Under EOL. Consider CBM-25X or CBM-50X as
replacement. Contact Luminus for details

CBT-39-UV LEDs

Features

  • Chip area 1:1.1 aspect ratio: matched to TI's 0.55" XGA DLP for 3D printing applications
  • Low thermal resistance package, Rth, j-c = 1.6°C/W
  • Typical peak wavelength 405 nm
  • 6.6W typical optical power
  • Operation at up to 6A DC
  • Low-profile window for efficient coupling into optical systems of fibers

APPLICATIONS

  • 3D Printing
  • Fluorescence imaging
  • Ink and adhesives curing
  • Spot curing
  • Machine vision
  • Medical and scientific instrumentation
CBM-40-UV-Gen4 CBM-40-UV (Gen4) 365 nm MCPCB
26.5 mm x 16.0 mm		 6.0 A 3.3 W - 3.7 W Datasheet Under EOL. Consider CBM-25X or CBM-50X as
replacement. Contact Luminus for details
385 nm 8.0 A 10.8 W - 11.5 W
405 nm 8.0 A 9.2 W - 9.9 W

CBM-40-UV (Gen4) LEDs

Features

  • Mosaic Array UV LED chipset with surface emitting area of 4 mm2, 1:1 aspect ratio
  • All the benefits of chip on board processing without the need for complicated assembly process
  • Vertical chip UV LED technology for high power density and uniform emission
  • High thermal conductivity common cathode copper coreboard package
  • Low-profile window for efficient coupling into small-etendue systems
  • Can be operated at variable drive currents up to 8A

APPLICATIONS

  • Rapid Prototyping and 3D printing
  • Machine Vision
  • Fiber-coupled illumination
  • Specialty Projection Systems for Maskless Lithography
  • Medical and Scientific Instrumentation
CBM-80-UV CBM-80-UV 405 nm MCPCB
28.0 mm x 26.5 mm		 16.0 A 18.0 W - 24.8 W Datasheet
 Under EOL. Consider CBM-25X or CBM-50X as
replacement. Contact Luminus for details

CBM-80-UV LEDs

Features

  • Mosaic Array UV LED chipset with surface emitting area of 8mm2, 2:1 aspect ratio
  • Common Cathode Vertical chip UV LED technology for high power density and uniform emission
  • High thermal conductivity common cathode copper coreboard package
  • Low-profile window for efficient coupling into small-etendue systems
  • Etendue matched to TITM 0.65" DMD for 3D Printing and Maskless Lithography Applications
  • Can be operated at variable drive currents up to 16A

APPLICATIONS

  • Curing: Inks, Coatings and Adhesives
  • Inspection
  • Machine Vision
  • Fiber-coupled illumination
  • Specialty Projection Systems for Maskless Lithography
  • Rapid Prototyping and 3D printing
  • Medical and Scientific Instrumentation
CBT-90-UV 405 nm MCPCB
28.0 mm x 26.75 mm		 27.0 A 22.5 W to 30.0 W Datasheet Active
415 nm
SBM-120-UV SBM-120-UV 365 nm SMT
11.0 mm x 10.0 mm		 4.5 A 14.0 W - 17.5 W Datasheet
 Active
385 nm 6.0 A 27.2 W - 32.9 W
395 nm 6.0 A 27.2 W - 32.9 W
405 nm 6.0 A 24.8 W - 29.9 W

SBM-120-UV LEDs

Features

  • Extremely high optical output from a compact UV LED emitter - over 20W/cm2 output
  • High thermal conductivity package - 0.28°C/W junction to case
  • Surface Mount Array UV LED chipset with surface emitting area of 12 mm2
  • Vertical chip UV LED technology for high power density and uniform emission
  • Wide Range of UVA Wavelengths (365, 385, 395 and 405 nm)
  • Unencapsulated die with low profile protective window facilitates optical coupling and maximizes irradiance versus working distance
  • Electrically isolated thermal path
  • Resilient series-parallel chip configuration for lower current operation up to 4.5 A

APPLICATIONS

  • Curing: Inks, Coatings, Adhesives
  • Inspection
  • Machine Vision
  • Fiber-coupled illumination
  • Scientific Instrumentation
  • Entertainment Lighting / Black Lights
CBM-120-UV-Gen4 CBM-120-UV (Gen4) 365 nm MCPCB
28.0 mm x 26.5 mm		 24.0 A 16.4 W - 19.8 W Datasheet Active
385 nm 29.9 W - 32.9 W
405 nm 27.2 W - 29.9 W

CBM-120-UV LEDs

Features

  • Mosaic Array UV LED chipset with surface emitting area of 12 mm2, 4:3 aspect ratio
  • All the benefits of chip on board processing without the need for complicated assembly process
  • Vertical chip UV LED technology for high power density and uniform emission
  • Wide Range of UVA Wavelengths
  • High thermal conductivity common cathode copper coreboard package
  • Low-profile window for efficient coupling into small-etendue systems
  • Can be operated at variable drive currents up to 18A

APPLICATIONS

  • Curing: Inks, Coatings, Adhesives
  • Inspection
  • Machine Vision
  • Fiber-coupled illumination
  • Specialty Projection Systems for Maskless Lithography
  • Rapid Prototyping and 3D Printing
  • Medical and Scientific
