SST SERIES SELECTOR GUIDE

Product Image	Product	Color	Package	Max Drive Current	Optical Output	Links	Status
	SST-10-UV	365 nm	SMT 3.45 mm x 3.45 mm	1.0 A	0.7 W - 0.9 W	Ecosystem Datasheet	Active
		385 nm			0.9 W - 1.2 W
		395 nm			0.9 W - 1.2 W
		405 nm			0.8 W - 1.0 W
SST-10-UV LEDs Features High Power UV LED with Peak Wavelengths between 365-405nm Industry standard 3.5mmx3.5mm package 130° viewing angle at 50% Iv Low Thermal Resistance - 3.4 C/W Built-in ESD Protection APPLICATIONS Horticulture Curing Adhesives Inks Plastic Products
	SST-10-B	Blue (450 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	510 - 670 mW (0.35 A)	Ecosystem Datasheet	Active
	SST-20-B	Blue (450 nm)	SMT 3.45 mm x 3.45 mm	3.0 A	630 - 830 mW (0.35 A)	Ecosystem Datasheet	Active
	SST-10-SB	Sky Blue (470 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	470 - 590 mW (0.35 A)	Ecosystem Datasheet	Active
	SST-10-G	Green (527 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	190 - 350 mW (0.35 A)	Ecosystem Datasheet	Active
	SST-10-R	Red (621 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	230 - 390 mW (0.35 A)	Ecosystem Datasheet	Active
	SST-10-DR	Deep Red (660 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	270 - 430 mW (0.35 A)	Ecosystem Datasheet	Active

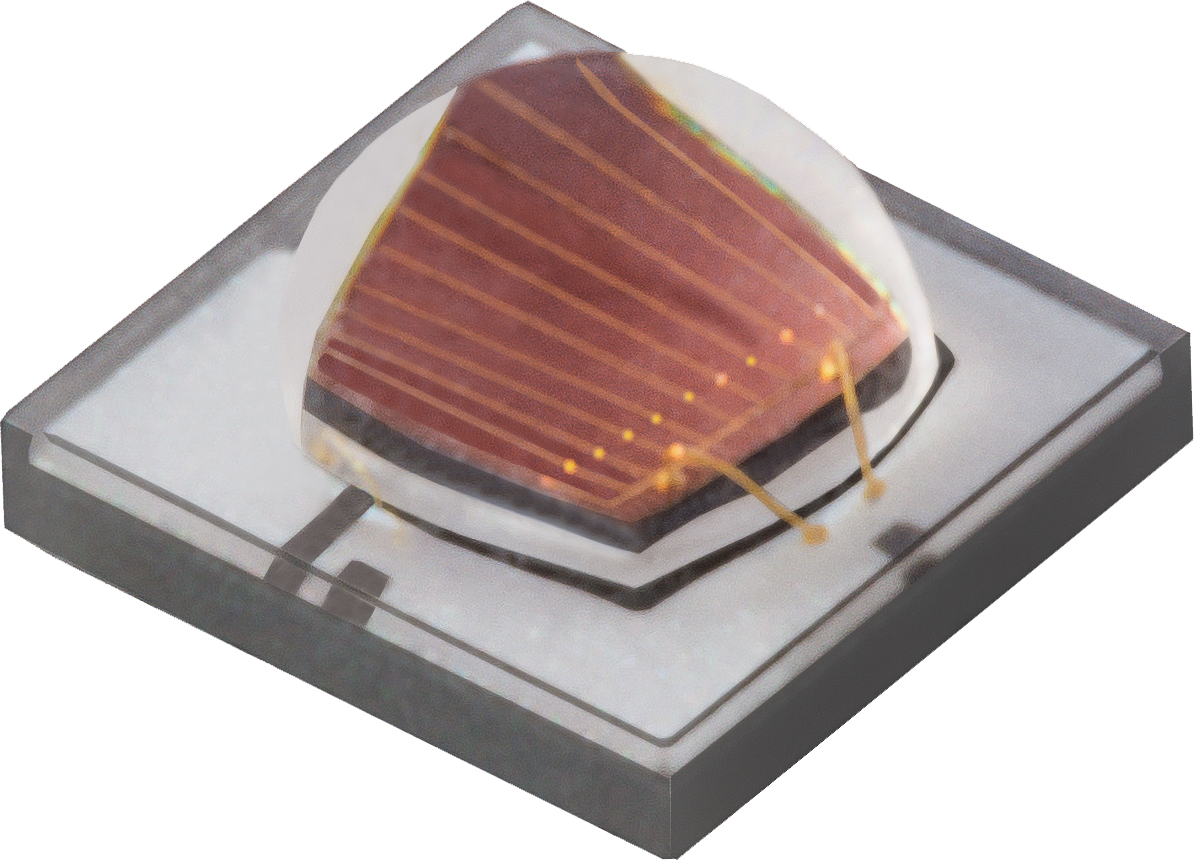

	SST-20-DR	Deep Red (660 nm)	SMT 3.45 mm x 3.45 mm	2.0 A	790 - 990 mW (0.70 A)	Ecosystem Datasheet	Not Recommended for New Designs

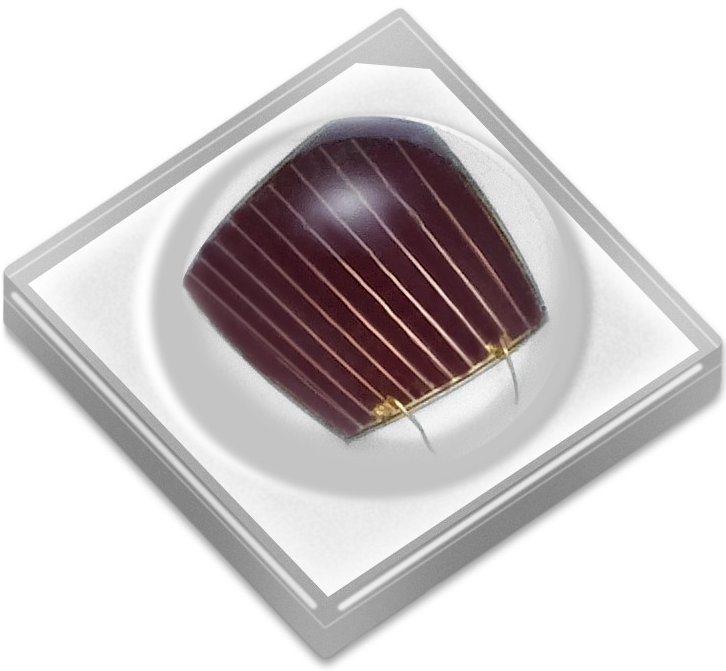

	SST-20-DR Gen 2	Deep Red (660 nm)	SMT 3.45 mm x 3.45 mm	2.0 A	870 - 1070 mW (0.70 A)	Ecosystem Datasheet	Active
	SST-10-FR	Far Red (730 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	270 - 390 mW (0.35 A)	Ecosystem Datasheet	Active
	SST-20-WxS	5000 – 6500 K White, Standard CRI	SMT 3.45 mm x 3.45 mm	3 A	900 - 1100 lm (3 A)	Ecosystem Datasheet	Active
SST-20-W Specialty White LEDs The SST-20-W series are high brightness white LED suitable for operation up to 10W that excel in directional specialty applications requiring a combination of high efficacy and high lumen output. They complement Luminus' SST-10/SST-20 series of monochromatic LEDs spanning from Ultra-Violet to Infra-Red. Features High Power White LED series in 3535 ceramic surface mount package Available in 5000K, 5700K and 6500K, 70 CRI typical with maximum output in excess of 900 lm at 3A Specified and binned at 85 °C Cool White typical efficacy of 180 lm/W at 350 mA, 85°C junction temperature Maximum drive current: 3 A DC Compact monolithic emitter ideal for directional lighting applications with high uniformity 120° viewing angle Available with 2 industry standard soldering footprint configurations High thermal conductivity package - junction thermal resistance of only 3.5 ° C/W 8000V HBM ESD rating per JEDEC/ESDA STANDARD JS-001 Electrically isolated thermal path APPLICATIONS Horticulture grow lights Automotive after-market and tuning: light bars, spotlight, headlights Bicycle lights Battery and solar-powered lighting Industrial Lighting
	SST-20-WxH	2700 – 4000 K White, 95 CRI	SMT 3.45 mm x 3.45 mm	2 A	155 – 320 lm (700 mA)	Ecosystem Datasheet	Active
SST-20-W Specialty White LEDs The SST-20-W series are high brightness white LED suitable for operation up to 10W that excel in directional specialty applications requiring a combination of high efficacy and high lumen output. They complement Luminus' SST-10/SST-20 series of monochromatic LEDs spanning from Ultra-Violet to Infra-Red. Features High Power White LED series in 3535 ceramic surface mount package High CRI series: 2700K, 3000K, 3500K with 95 CRI min. and 4000K with 90 CRI min Specified and binned at 85 °C Cool White Typical efficacy > 170 lm/W at 350 mA, 85°C junction temperature Maximum drive current: 3 A DC Compact monolithic emitter ideal for directional lighting applications with high uniformity 120° viewing angle Available with 2 industry standard soldering footprint configurations High thermal conductivity package - junction thermal resistance of only 3.5 ° C/W 8000V HBM ESD rating per JEDEC/ESDA STANDARD JS-001 Electrically isolated thermal path APPLICATIONS Horticulture grow lights Spot / tracklight Stage / Studio Lighting

COB SERIES SELECTOR GUIDE

Product Image	Product	Color	Package	Max Drive Current	Optical Output	Links	Status

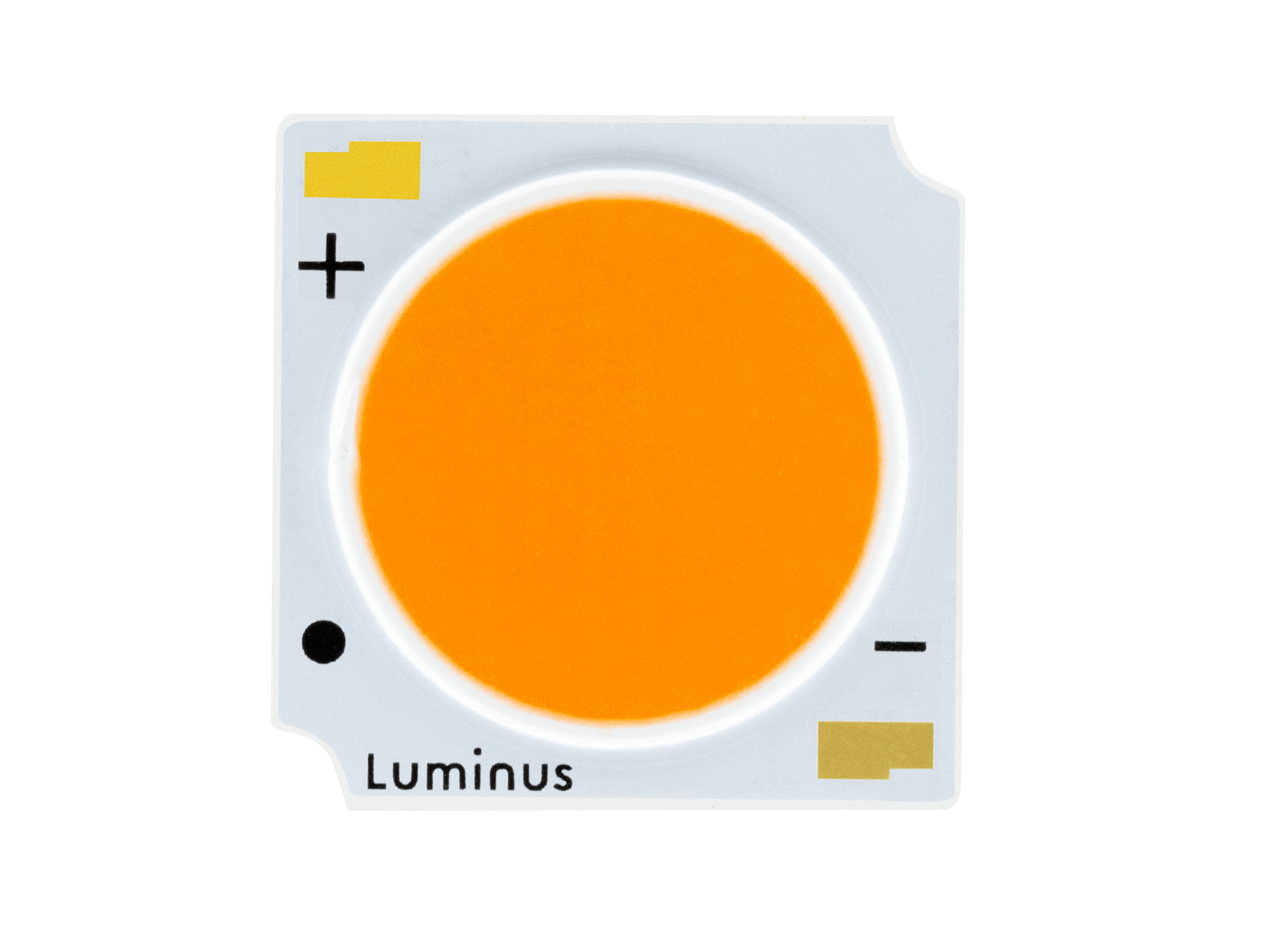

	CXM-14	Purple	COB package 19 mm * 19 mm (AC) 14.3 mm LES	1,440 mA	40 ~ 72 (μmol/s)	Ecosystem Datasheet	Active
	CXM-14	Plant White	COB package 19 mm * 19 mm (AC) 14.3 mm LES	1,440 mA	40 ~ 72 (μmol/s)	Ecosystem Datasheet	Active
	CLM-22	Purple	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	60 ~ 115 (μmol/s)	Ecosystem Datasheet	Active
	CLM-22	Plant White	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	60 ~ 115 (μmol/s)	Ecosystem Datasheet	Active

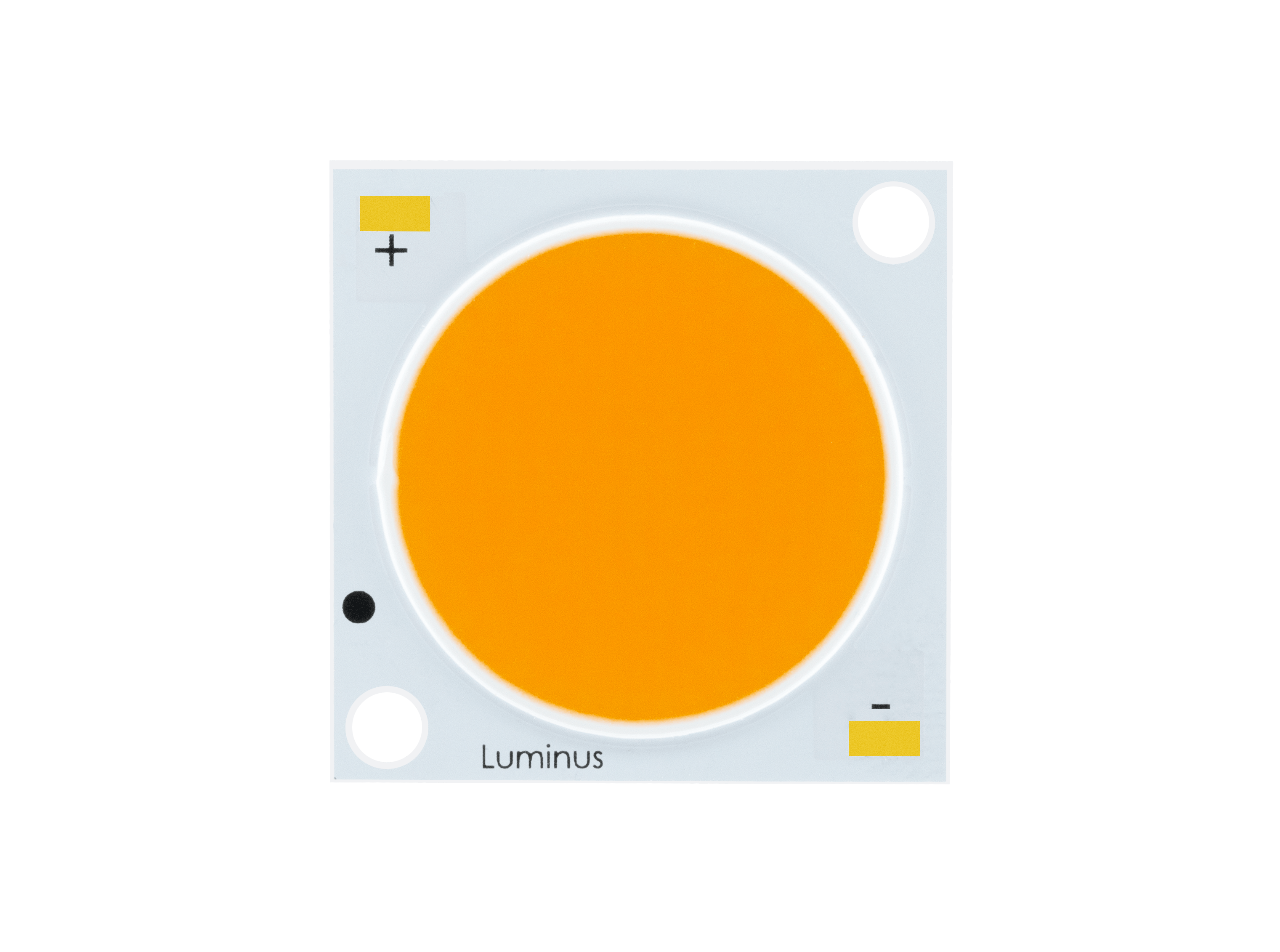

	CXM-22	Purple	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	90 ~ 165 (μmol/s)	Ecosystem Datasheet	Active
	CXM-22	Plant White	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	90 ~ 165 (μmol/s)	Ecosystem Datasheet	Active
	CXM-32	Plant White	COB package 38 mm * 38 mm (AC) 32 mm LES	4,400 mA	200 ~ 360 (μmol/s)	Ecosystem Datasheet	Active

COB SERIES SELECTOR GUIDE

Product Image	Package Platform	Voltage (V)	Current (mA)	Input Power (W)	TYP FLUX (lm), 3000k, 80CRI	TYP lm/W, 3000k, 80CRI	Downloads
	NEW MP-3030-110H	2.8	65	0.182	33	181	Datasheet
	NEW MP-3030-12ZH	2.67	65	0.173	33.5	193	Datasheet
	NEW MP-3030-210H	6.0	150	0.9	140	156	Datasheet
	MP-5050-8100	24	200	4.8	630	131	Datasheet
	NEW CUBE-1616-1103	3.0	150	0.45	62	138	Datasheet
	NEW CUBE-1616-2103	6.0	150	1.0	118	131	Datasheet
