Product Image	Product Family	Peak Wavelength	Package	Max. Drive Current	Optical Output	Downloads	Status
	SST-05-IR	850 nm	SMT 3.45 mm x 3.45 mm	2 A (pulse)	295 mW (0.35A)	Datasheet	Active
					800 mW (1.0A)
	SST-10-IR	850 nm	SMT 3.45 mm x 3.45 mm	1.5 A (CW)	265 - 325 mW (0.35 A)	Datasheet	Active
		940 nm			205 - 265 mW (0.35 A)

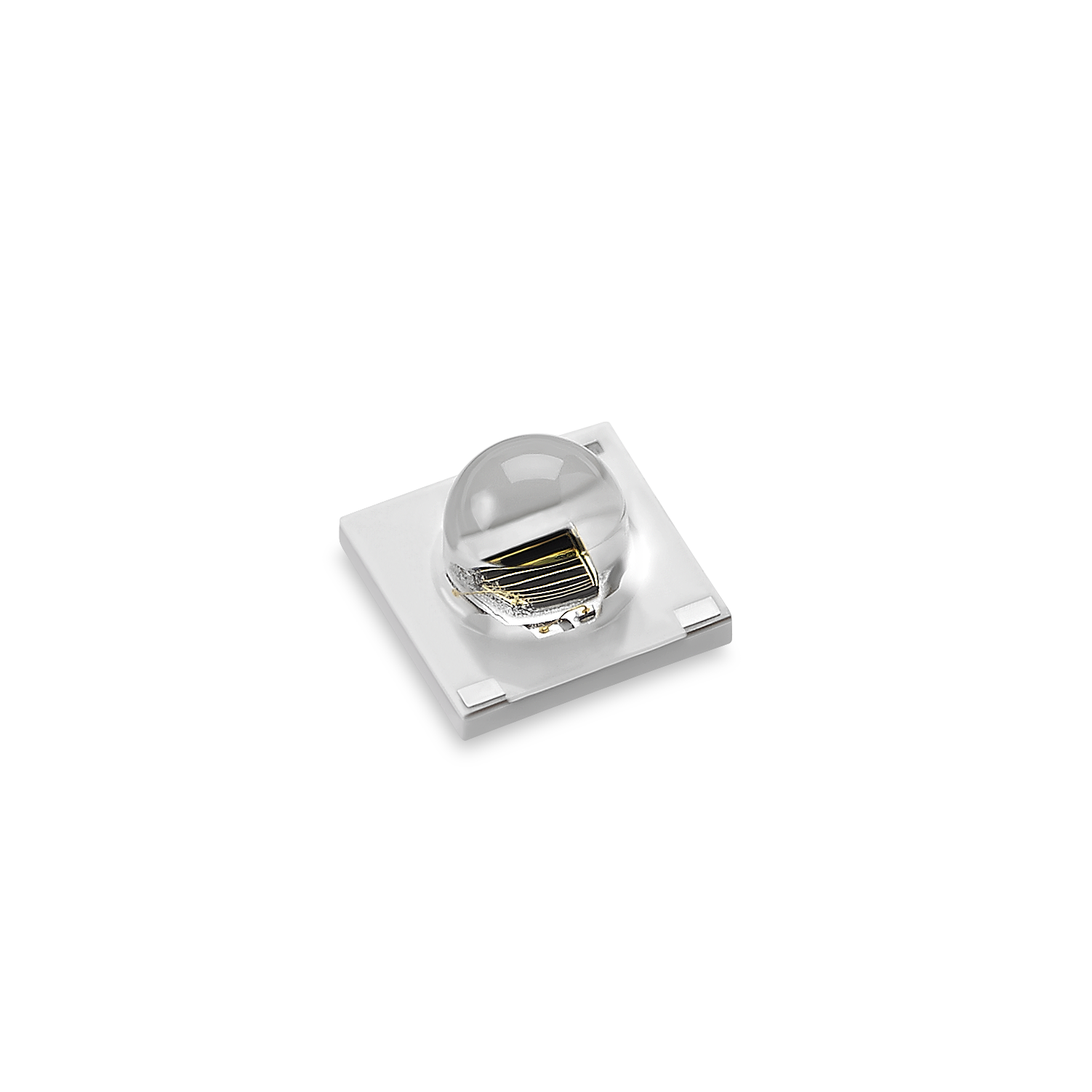

	SST-06-IRD	810 nm	SMT 3.45 mm x 3.45 mm	2 A (pulse)	295 mW (0.35A)	Datasheet	Active
					800 mW (1.0A)

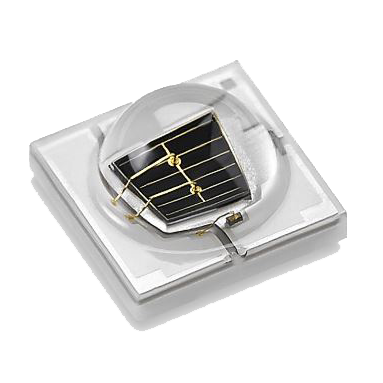

	SST-10-IRD	810 nm	SMT 3.45 mm x 3.45 mm	5 A (pulse)	535 mW (0.35A)	Datasheet	Not recommended for new designs
					1470 mW (1.0A)
	SST-10-IRD-BxxH	810 nm	SMT 3.45 mm x 3.45 mm	5 A (pulse)	535 mW (0.35A)	Datasheet	Active
					1470 mW (1.0A)
	SST-10-IRD	850 nm	SMT 3.45 mm x 3.45 mm	5 A (pulse)	550 mW (0.35A)	Datasheet	Not recommended for new designs
					1500 mW (1.0A)
	SST-10-IRD-BxxH	850 nm	SMT 3.45 mm x 3.45 mm	5 A (pulse)	580 mW (0.35A)	Datasheet	Active
					1500 mW (1.0A)
	SST-10-IRD	940 nm	SMT 3.45 mm x 3.45 mm	5 A (pulse)	535 mW (0.35A)	Datasheet	Not recommended for new designs
					1470 mW (1.0A)
	SST-10-IRD-BxxH	940 nm	SMT 3.45 mm x 3.45 mm	5 A (pulse)	535 mW (0.35A)	Datasheet	Active
					1470 mW (1.0A)
	SST-10-FR	Far Red (730 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	270 - 390 mW (0.35 A)	Ecosystem Datasheet	Active

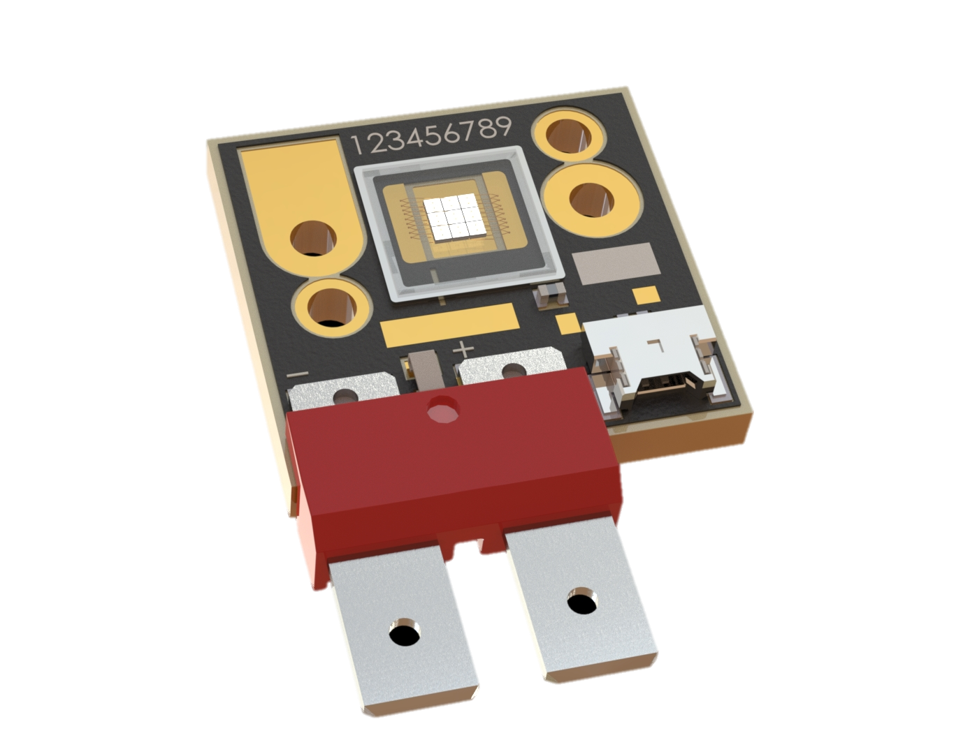

	CBM-90-IRD	780 nm	X33 28.00 mm x 26.75 mm core board	18 A (CW)	10 W (13.5 A)	Datasheet	Active
	CBM-90-IRD	860 nm	X33 28.00 mm x 26.75 mm core board	18 A (CW)	13 W (13.5 A)	Datasheet	Active
	CBM-90-IRD	950 nm	X33 28.00 mm x 26.75 mm core board	18 A (CW)	13 W (13.5 A)	Datasheet	Active
	CBM-120-FR	730 nm	C15 28.00 mm x 26.75 mm core board	18 A (CW)	4.6 - 10.6 W (13.5 A)	Datasheet	Active
